CrateDB stores, analyzes and tracks the location of people and objects in real-time, all with SQL.

By combining advanced geospatial capabilities with full-text and vector search, CrateDB enables more powerful insights, such as identifying assets based on location and descriptive data, optimizing operations like route planning, and delivering actionable, location-aware intelligence.

Geospatial data has a lot of points and generates a lot of data, that’s why you need great scalability. With CrateDB, you get scalable SQL support for geospatial data types and functions for geospatial applications such as fleet tracking, mapping, location analytics.

Location is important for many machine data analysis. For this reason, CrateDB can store and query geographical information using the geo_point and geo_shape data types. You can control geographic index precision and resolution for faster query results, and also run exact queries with scalar functions like intersects, within, and distance.


Geospatial data queries with SQL

Hyper-fast. Results in milliseconds.



/* Based on Chicago taxi trips, this query lists the longest 5 trips
   starting within 1km of the Shedd Aquarium and tells us the name
   of the community area that the trip ended within. */
SELECT tripid,
       miles,
       c.name as dropoff_area
FROM taxi_rides t, community_areas c
WHERE distance('POINT(-87.6118581 41.8672843)'::GEO_POINT, pickupcentroidlocation) < 1000
      AND dropoffcommunityarea = c.areanumber
ORDER BY miles DESC
LIMIT 5;






+------------------------------------------+-------+--------------+
| tripid                                   | miles | dropoff_area |
+------------------------------------------+-------+--------------+
| e6d27fb09f7b17695a71666654c40fd56b79f472 | 46.5  | LOOP         |
| eb8dbd2d81faa21f8f6d80117748a8630c55d55c | 37.27 | OHARE        |
| 6aaa0d2aed0423f1321ff5df949afef0e3583d58 | 37.16 | OHARE        |
| e9ab078e5e6ed4d29cfbd310ee75d47236d3afbb | 32.03 | OHARE        |
| 329b4e6980070cab4c2af19ddbc7b73c1497a669 | 31.67 | OHARE        |
+------------------------------------------+-------+--------------+






/* Based on Chicago taxi trips, this query retuern the number
   of trips per day that started at O'Hare airport and were
   over 20 miles long. */
SELECT date_bin('24 hour'::interval, starttime, 0) AS day,
       count(*) as trips
FROM taxi_rides
WHERE within(
        pickupcentroidlocation,
        'POLYGON (
          (-87.92151405039768 42.008992106324456,
           -87.93962405297475 42.00147632076016,
           -87.94067626623455 41.95592273798644,
           -87.89918645000783 41.9491763875842,
           -87.88992003878232 41.95716729007498,
           -87.8821237584836 41.95716462062882,
           -87.87074008603852 41.967968085787476,
           -87.87727540517479 41.99772302560805,
           -87.89707897269737 42.009775581434354,
           -87.92151405039768 42.008992106324456)
        )'
      )
      AND miles > 20
GROUP BY day
ORDER BY day DESC;






+---------------+-------+
|           day | trips |
+---------------+-------+
| 1714521600000 |    24 |
| 1714435200000 |   110 |
| 1714348800000 |   109 |
| 1714262400000 |    77 |
| 1714176000000 |    52 |
| 1714089600000 |    98 |
| 1714003200000 |   113 |
| 1713916800000 |    82 |
| 1713830400000 |    59 |
| 1713744000000 |    91 |
| 1713657600000 |    69 |
| 1713571200000 |    48 |
| 1713484800000 |    82 |
| 1713398400000 |    75 |
| 1713312000000 |    80 |
| 1713225600000 |    98 |
| 1713139200000 |   104 |
| 1713052800000 |    63 |
| 1712966400000 |    75 |
| 1712880000000 |   142 |
| 1712793600000 |   169 |
| 1712707200000 |   103 |
| 1712620800000 |   154 |
| 1712534400000 |   203 |
| 1712448000000 |    98 |
| 1712361600000 |    71 |
| 1712275200000 |    80 |
| 1712188800000 |    79 |
| 1712102400000 |    72 |
| 1712016000000 |    91 |
| 1711929600000 |    39 |
+---------------+-------+







/* Which communities of more than 30,000 people does a flight from O'Hare to
   Midway airport pass over? */
SELECT name,
       details['population'] AS population
FROM community_areas
WHERE
  intersects (
    'LINESTRING (-87.90753846894022 41.9807787186139, -87.72939445102593 41.97508268795004, -87.55763552335945 41.97982941555023, -87.47846040428642 41.92427055787562, -87.51102436455034 41.837749425166244, -87.59225264192574 41.80057450627759, -87.64801197528328 41.770600684095974, -87.69988112259261 41.7819633786835, -87.7530469985847 41.78583107072223)',
    boundaries
  )
  AND details['population'] > 30000
ORDER BY population DESC;






+------------------------+------------+
| name                   | population |
+------------------------+------------+
| UPTOWN                 |      57182 |
| EDGEWATER              |      56296 |
| CHICAGO LAWN           |      55931 |
| ALBANY PARK            |      48396 |
| LINCOLN SQUARE         |      40494 |
| NORWOOD PARK           |      38303 |
| GARFIELD RIDGE         |      35439 |
| WEST LAWN              |      33662 |
| GREATER GRAND CROSSING |      31471 |
+------------------------+------------+

Geospatial functions

With CrateDB geospatial functions, you can address these use cases easily:

  • Spatial count: find how many records are located within a specific area, thanks to the within function.
  • Spatial distance: find the closest record, thanks to the distance function.
  • Spatial overlap: find whether two areas overlap, thanks to the within and intersects functions.

Geospatial data formats

Geopoints

CrateDB offers versatile support for geospatial data types. For storing geopoint data, there are two primary formats you can use in the database:

  • Array Format: Geopoints can be represented as an array where the coordinates are in the format [longitude, latitude]. This array format provides a simple and straightforward way to store point locations.
  • WKT Format: CrateDB also supports the Well-Known Text (WKT) representation for geopoints. You can store geopoint data using the format: POINT(longitude latitude). This notation provides a standardized way to represent geospatial data.

Geoshapes

For storing more complex geospatial shapes into the database, CrateDB offers the following formats:

  • GeoJSON Format: This is a popular format for encoding a variety of geographical data structures. It’s versatile and can represent simple points, lines, and polygons as well as more complex shapes.
  • WKT Formats: Apart from the POINT format, CrateDB supports a variety of Well-Known Text formats for geoshapes. Whether you’re storing polygons, lines, or multi-points, WKT offers a standard representation for each of these geospatial structures.
Talk
Fleet_Management
Optimizing E-Scooter Fleets with IoT and Real-Time Geospatial Analytics

This presentation from AI & Big Data Expo 2024 explores how CrateDB enables efficient management of e-scooter fleets across cities. Learn how real-time tracking, geospatial data, and diverse analytics streamline fleet operations, improve resource allocation, and solve urban mobility challenges.

Watch the recording
Academy
geospatial
CrateDB Academy Lesson: "Geospatial Data"

In this lesson, you will learn why CrateDB excels at storing, analyzing, and tracking the location of people and objects in real time. Whether you're managing a fleet of vehicles, offering customers information about services near their location, or analyzing historical traffic patterns, CrateDB's geospatial data types and functions have you covered.

Watch the lesson
Academy
Would like to see an image with a developer doing an handson exercise on a laptop-1
Hands-on exercise

Spin up your CrateDB Cloud cluster and play around with some geospatial queries. Determine for example determine how many of each type of 311 call was made from an area close to the local airport.

Get ready

Curious to learn more?

Start free
Contact us

User stories

The GolfNow division of the NBC Universal GolfChannel is trusted by 4 million registered golfers to search for golf courses that fit preference and budget. They use CrateDB to currently perform real-time queries of more than 300 million rows of data, hundreds of times per second.

"CrateDB was a better solution for our needs than any other SQL or NoSQL database we tried. It was easy to migrate code off of our legacy SQL database and onto CrateDB to immediately benefit from its data flexibility and scalable performance."

Sheriff Mohamed
Director of Architecture
GolfNow

Read more
golfnow
Spatially Health is a provider of location intelligence software.They use CrateDB for their data scientists to find geographic insights through the patterns and relationships in their data by analyzing terabytes of data. They plan to scale CrateDB to handle hundreds of terabytes as it continues to expand to other cities.

"Postgres couldn't keep up with the data we have; Datastax Enterprise had ingest scaling issues with spatial data; Cassandra didn't have spatial query operations. CrateDB was the only database we found that could smoothly process data for our users and for our data science team. We fell in love with it immediately."

Kartik Venkatesh
CTO
Spatially Health

Read more
Spatially-Health
AVUXI provides location context for travel and real estate. They use CrateDB to collect and query geotagged data from over 65 million locations, processing over 20 million events every day.


"It is a pleasure working with companies like yours, that listen and care about their customers."

Read more
Avuxi

Clickdrive.io tracks automotive vehicle fleets in real-time. They use CrateDB to enable storage and analysis of up to 2,000 data points per second, per car.

"Most of the cars in our customers' fleets are in use almost 24 hours a day, and we need to store and analyse the massive amounts of data they generate in real time. We tried a few different SQL and NoSQL databases, and CrateDB offered the best combination of high performance, scalability and ease of use."

Read more
Clickdrive

Related blog posts

Geospatial Data
Vector Data
Time Series Data

CrateDB: The Real-time Analytics Database Built for a Unified Data World

 2025-07-03

In the era of AI and real-time analytics, data is not just growing—it’s becoming more complex. Organizations are ingesting structured records, semi-structured logs, free-text documents, real-time ...

Read more

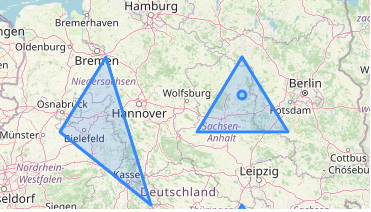

Shapes on the Map of Germany
Product
Community
Geospatial Data

Geometric Shapes Indexing with BKD-trees

 2024-03-26

We are thrilled to announce that in CrateDB version 5.6.0, we introduced a BKD-tree-based indexing strategy for geometric shapes. In this blog post, we delve into the significance of this addition. ...

Read more

Best Database for Geospatial Data
Geospatial Data

Best Database for Geospatial Data

 2024-02-29

Geospatial data is a type of information that describes objects or events with a specific location on or near the surface of the Earth. It combines location information and attribute information with ...

Read more

Other resources on geospatial data

Documentation

Geo data types

GEO_POINT, GEO_SHAPE

Documentation

Geo search

MATCH, intersects, within, distance

FAQ

Geospatial data represents specific geographical locations using latitude and longitude coordinates or text fields naming geographical areas like countries or states. This data is crucial for applications that require tracking and analyzing the location of people and objects. CrateDB supports the storage, analysis, and real-time tracking of geospatial data - all using SQL.

Spatial data encompasses various formats used to represent geographic locations and shapes. Common examples include arrays for simple point data and GeoJSON or WKT formats for more complex shapes. CrateDB supports these geospatial data types, offering flexibility and precision in storing and querying geospatial information.

Storing geospatial data efficiently requires a database with strong scalability due to the large volume of data points it generates. It should allow for the control of geographic index precision and resolution to enable faster query results and support exact queries with functions like intersects, within, and distance. CrateDB excels in this area by offering scalable SQL support for geospatial data types, including geo_point and geo_shape, making it ideal for geospatial applications.

The best databases for spatial data should offer advanced geospatial functions to handle spatial count, distance and overlap efficiently. Examples of databases optimized for spatial data include CrateDB, Amazon Aurora, Esri ArcGIS, and MariaDB. CrateDB supports robust geospatial capabilities, allowing for seamless integration and analysis of spatial data.

Geospatial analytics involves analyzing data that is tied to specific geographical locations, often represented through maps or spatial coordinates. Unlike traditional data analytics, which typically focuses on numerical or categorical data, geospatial analytics adds a locational context to data, allowing users to visualize and analyze spatial patterns, relationships, and trends. This added dimension enables more accurate decision-making in fields like urban planning, environmental monitoring, and transportation logistics.

Geospatial analytics is widely used across multiple industries, including:

  • Transportation and Logistics: For route optimization, fleet management, and tracking vehicles or assets in real-time.
  • Urban Planning and Smart Cities: To analyze land use, infrastructure, and traffic patterns, supporting sustainable urban growth.
  • Agriculture: To monitor crop health, manage resources, and optimize yields based on soil and climate data.
  • Energy and Utilities: For managing infrastructure, predicting demand, and optimizing energy distribution.
  • Retail and Real Estate: To analyze customer demographics and locations to improve marketing strategies and site selection.

Geospatial analytics relies on various types of data, including:

  • GPS and Satellite Data: Provides location information, often used for tracking and monitoring assets.
  • IoT Sensor Data: Used for real-time monitoring of infrastructure, vehicles, or environmental conditions in smart cities or logistics networks.
  • Geotagged Social Media Data: Captures user-generated content with location metadata, useful for real-time insights.
  • Demographic Data: Helps understand population distribution, income levels, and other societal factors in a geographic area.
  • Remote Sensing Sata: Involves the collection of data about the Earth’s surface from aircraft or satellites, often used in agriculture, environmental monitoring, and land use planning.



CrateDB manages geospatial data by providing native support for geographic data types, such as points, lines, and polygons. It allows users to store, query, and analyze geospatial data efficiently, leveraging SQL for easy querying. CrateDB supports geospatial indexing, enabling fast lookups and proximity searches. It also integrates with common geospatial standards like GeoJSON, making it compatible with a wide range of applications. Additionally, CrateDB’s scalability ensures that it can handle large datasets, making it suitable for real-time geospatial analytics across industries such as logistics, IoT, and smart city initiatives. More information here.
